Lastest Version: 3.9.0.72 Update on 26 October 2020


Tarosoft Image Frame Work

work with Stereo Microscope, Microscope

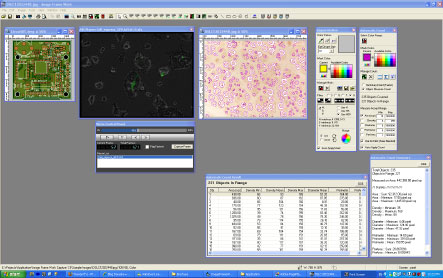

Image Analysis Software which provide you with dozen of measuring tools. Suitable for biological research and Industrial quality control and inspection job. Measuring tools provide you for Length measurement, Area measurement, Radius measure and much much more. IFW come with automatic object count which fast and accuracy result. The accept range can be specific to filter only interesting objects. Please see below for the specifications:-



Supports Most Popular Digital Camera

Sentech Nikon DSLR Digital Camera
  Model: STC-MCA5MUSB3   Dedicate Models: D4s, D4, Df, D800A, D800/D800E, D3, D300, D300S, D3X, D750, D700, D610, D600, D7200, D7100, D7000, D90, D5500, D5300, D5200, D5100, D5000, D40, D60, D200, D80, Nikon 1 V3

  Preview: Supported   Preview: Supported
      (base on Nikon "Live View" features)
  Interface: USB3.0   D5500 not supports "Live View" on IFW

  Microscope Adapter: C-Mount   Interface: USB

      Microscope Adapter: F-Mount to Trinocular, F-Mount to Eyepiece
The Imaging Source

  Model: All Models

  Preview: Supported

  Interface: USB, Firewire, GigE

  Microscope Adapter: C-Mount to Trinocular, C-Mount to Eyepiece



* The cameras and all hardware are sold seperated. Please contact your local microscope distributor in your country for more detail.

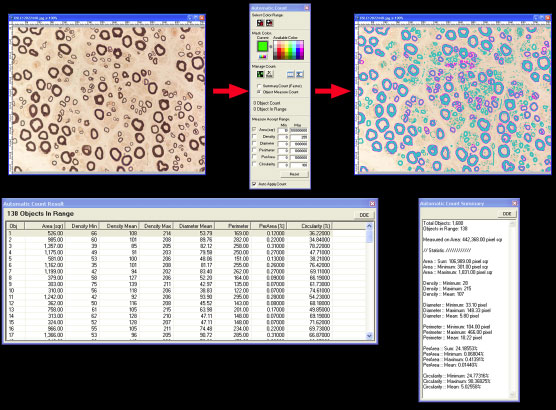

Automatic Object Count With Accept Range


You can config the Measurement Accept Range to un-count the unwanted object (Area, Density, Diameter, Perimeter, PerArea, Circularity). The measurement result will give you with the individual object properties. The Summary window also give you with the count statistic for all parameters



Image Acquisition


Acquire images from Wide range of

digital camera or video sources

(USB, FireWire cameras, GigE)



Acquire images from scanner or

digital camera which supported

TWAIN standard



Use images from variety of source

e.g. CD-ROM, Hard Disk



Live image preview





Image Enhancement & Processing


Adjust Brightness, Contrast, Gamma also invert the color of
    images



Automatic Contrast adjustment by Equalize calculation



Rotate/Flip image by 90 degree clockwise or 90 degree

counter-clockwise or 180 degree upside down. Also image can flip

by horizontal or vertical direction



Image enhancement by following filter: Mean, Gaussian,

Unsharp Mask, Emboss, Edge Detection



Convert image from color to gray scale or binary image by

using Threshold



Extract color channel for separated Red, Green, Blue channel

for analysis



Color Composite for merge images taken under fluorescence

microscope by individual filter block to become one image

of all channel

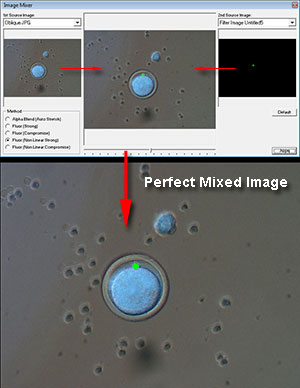

Image Mixer is an alternative choice for merge images taken

from difference observation technique such as DIC image with

fluorescence image



AVI Maker can manage a collection of series of images taken as
    time lapse imaging to become a movie format









Measurement & Tools

Automatic Object Count with Summary. Fast and accuracy tool for save your time. The result show as table with

Area, Density, Diameter, Perimeter, PerArea, Circularity information



Measure Distance (Length measurement), Rectangle measurement, Ellipse measurement, Poly-line or Polygon

measurement, Area measurement, Angle measurement, Diameter measurement, Radius measurement

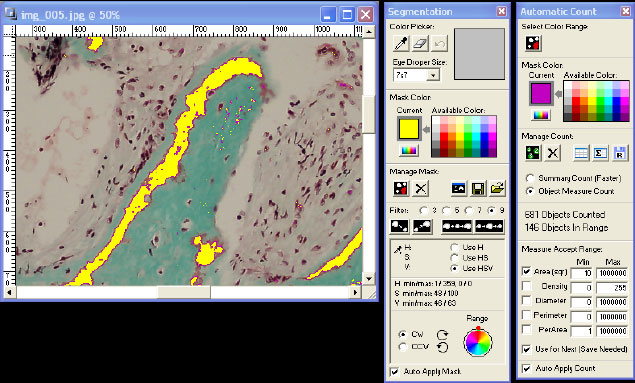

ROI and ROI Mask, the Region of Interest define tool to specific the area for Segmentation and
    Automatic Object Count



Horizontal Vernier and Vertical Vernier, Easy and Useful tool for inspection routine



Calibration with reference such as micrometer, save-able for future use



One Click for Scale Bar and Objective Lens icon for Calibration value use



Manual Tag for count and classify objects up to 7 groups and 5 sub type for each group



Density measure with histogram and Statistic



Density Ratio, the perfect tool for ratio calculation between control and test



Measure Calculator, you can calculate the result for multiple images in a second without other software



Color or Density Classification for gain measuring


and much much more tools



Please feel free to contact us anytime at sales@tarosoft.in.th, supports@tarosoft.in.th
